ASTM A403 STAINLESS STEEL 317 PIPE FITTINGS MANUFACTURING IN INDIA
Our SS 317 Buttweld Fittings are expertly engineered to provide exceptional durability and reliability in the most demanding environments. Manufactured from SS UNS S31700 Welded Pipe Fittings, these buttweld fittings offer superior resistance to corrosion and high temperatures, making them ideal for applications in chemical processing, power generation, and marine industries.
Our comprehensive range of SS WP317 Pipe Fittings includes elbows, tees, reducers, and caps, all designed to ensure a seamless fit and optimal performance. As a leading SS 317 Pipe Fittings Supplier, Astromet steel and Engineering is dedicated to delivering products that meet stringent industry standards and exceed customer expectations. Partner with us for your piping needs and experience the quality and reliability that make us a trusted Stainless Steel 317 Pipe Fittings Manufacturer.
Why SS 317 is Ideal for the Oil and Gas Industry:
Enhanced Corrosion Resistance:
SS 317 gives high-quality resistance to pitting and crevice corrosion, especially in environments with high tiers of chlorides and different corrosive substances. This makes it ideal for use within the harsh environments encountered within the oil and fuel enterprise.
High-Temperature Strength:
SS 317 keeps its mechanical homes at extended temperatures, making sure reliable overall performance in excessive-temperature operations is not unusual within the oil and gas sector. This alloy can resist the thermal stresses of refining and extraction processes without dropping its structural integrity.
Durability and Longevity:
The oil and gasoline enterprise needs substances that could bear extended exposure to corrosive environments and mechanical pressure. SS 317’s robustness reduces the need for frequent preservation and replacements, improving the sturdiness and efficiency of important additives.
Versatility:
SS 317 is used in loads of packages within the oil and gas enterprise due to its high-quality homes:
Heat Exchangers: Efficiently cope with excessive temperatures and corrosive media.
Piping Systems: Ensure secure and dependable delivery of oil, fuel, and other fluids.
Pressure Vessels: Withstand high pressures and temperatures at some point of refining methods.
Structural Components: Provide crucial help and stability in offshore systems and drilling rigs.
ASTM A403 WP 317 Pipe Fitting Specifications
| Specifications | ASME SA403 / ASTM A403 |
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Standard Size Range | 1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Butt Weld |
| Melting Point | 1400-1450°C for (WP317) |
| Outside Diameter (OD) | Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Materials | AISI 317 |
| Two Halve / Two Joint Buttweld Fittings Size | 6″ to 48″ |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
| A403 SS Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A403 SS Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
Types of Buttweld Fittings:
At Astromet Steel and Engineering, we offer a number of fittings to your unique needs, such as;
Elbows
Elbows are used to change the route of go with the flow in a piping device. They come in 3 predominant angles: 45 degree, 90 degree, and 180 degree.
- 45-Degree Elbow: This elbow modifications the direction of drift through 45 ranges. It is frequently used in systems where space is confined or a mild exchange in direction is required.
- 90 degree Elbow: The maximum common elbow, it changes the flow direction by way of 90 tiers, commonly used in plumbing, heating, and cooling systems.
- 180-Degree Elbow: This elbow permits for a complete U-turn inside the piping device, useful in applications requiring a decent flip.
Buttweld Tees
Tees are used to mix or break up fluid flow in a piping gadget. They have 3 openings: one inlet and retailers, or vice versa.
Buttweld Caps
Caps are used to seal the ends of pipes, stopping glides from exiting the pipe machine. They are crucial for shutting off unused or future connections.
Buttweld Reducers
Reducers are used to attach pipes of various diameters, ensuring an easy transition between varying pipe sizes.
- Concentric Reducer: This reducer has a conical form and aligns the centerlines of both pipes, typically utilized in vertical piping structures.
- Eccentric Reducer: This reducer has an off-center shape, stopping air pockets in horizontal piping structures.
Buttweld Stub Ends
Stub Ends are used along with lap joint flanges, taking into account easy assembly and disassembly of piping systems for inspection and preservation. They are available at diverse lengths and diameters, making them flexible for exclusive piping configurations.
Buttweld Nipples
Nipples are quick lengths of pipe with male threads on both ends, used for connecting two other fittings or pipes.
Buttweld Crosses
Crosses have four openings and are used to break up or integrate glides in four directions. This nipple has a hexagonal middle, taking into consideration clean tightening with a wrench. It is usually used for connecting pipes in tight spaces where a firm grip is needed.
UNS S31700 Buttweld Fittings Equivalent Grade Chart
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| 317 | 1.4449 | S31700 | SUS 317 | – | – | – | – |
ASTM A403 WP317 Stainless Steel Buttweld Fittings Chemical Composition
| Grade | C | Ni | Mn | P | S | Cr | Si | Mo | Fe |
| 317 | 0.08 max | 11.00 – 15.00 | 2 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 1 max | 3.00 – 4.00 | 57.845 min |
317 SS Pipe Fittings Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
317 Stainless Steel Buttweld Pipe Fittings Dimensions & Weight Chart
ASTM A403 WP317 Stainless Steel Elbows and Returns Pipe Fittings (NPS 1/2 to 24, Schedule STD/XS)- Dimensions and Weights.
|
NOMINAL PIPE SIZE (INCHES) |
OUTSIDE DIAMETER |
45°ELBOWS | 90° ELBOWS | 180° RETURNS | ||||
| LONG RADIUS | LONG RADIUS | SHORT RADIUS | LONG RADIUS | |||||
| (MM) | (INCHES) |
CENTER TO FACE (INCHES) |
RADIUS (INCHES) |
CENTER TO FACE (INCHES) |
CENTER TO FACE (INCHES) |
CENTER TO CENTER (INCHES) |
BACK TO FACE (INCHES) |
|
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Socket Weld Fittings.
Astromet Steel and Engineering is proud to offer top-quality SS 317 Socket Weld Fittings, designed to meet the rigorous demands of industrial applications. These fittings are crafted from premium-grade stainless steel, providing excellent resistance to corrosion and high temperatures. Our SS 317 Socket Weld Fittings are ideal for use in high-pressure systems, ensuring secure and leak-proof connections.
With precise manufacturing and stringent quality control, we ensure that each fitting meets the highest standards of durability and performance. Whether used in chemical plants, refineries, or power stations, our socket weld fittings deliver consistent and reliable results. At Astromet Steel and Engineering, we are committed to providing exceptional products and services, making us a preferred choice for customers seeking robust and reliable piping solutions. Choose our SS 317 Socket Weld Fittings for your next project and experience the excellence of Astromet craftsmanship.
Stainless Steel 317 Socket Weld Pipe Fitting Specifications
| Specifications | ASTM A182 / ASME SA182 |
| Dimension Standard | ANSI/ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Standard Size Range | 1/8” NB to 4” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Socket Weld |
| Melting Point | 1400-1450°C for (WP317) |
| Outside Diameter (OD) | Seamless / Socket Weld Fittings ( 1/8″～4″), ERW / Welded / Fabricated Socket Weld Fitting (1/8″～4″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-79, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Manufacturing Specification | ASME: ANSI B16.11, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2, MSS SP-79, 83, 95, 97, BS 3799 |
| A182 317 SS Socket Weld Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A182 SS 317 Socket Weld Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
Socket Weld Types:
Socket Weld Elbow
Socket weld elbows trade float route in piping structures, in 45° and ninety° angles, ideal for high-stress packages in chemical, oil, and electricity industries.
Socket Weld Tee
Socket weld tees department piping systems, combining or splitting waft securely. They are critical in excessive-stress industries like chemical flora, refineries, and water treatment facilities.
Socket Weld Coupling
Socket weld couplings join two pipe pieces securely, making sure a leak-evidence joint for excessive-pressure programs in chemical, oil, and strength plant structures.
Socket Weld Union
Socket weld unions be a part of two pipes, permitting easy disconnection and reconnection. Ideal for systems requiring frequent maintenance, including water treatment and HVAC.
Socket Weld Cap
Socket weld caps near pipe ends, preventing fluid waft and defense from contaminants. Essential in oil, chemical, and water treatment industries.
Socket Weld Reducer
Socket weld reducers join one-of-a-kind pipe diameters, ensuring easy transitions. Suitable for excessive-strain systems in oil, chemical, and strength generation industries.
Socket Weld Cross
Socket weld crosses create intersections in piping systems, dispensing fluid drift. Ideal for excessive-strain programs in chemical, oil, and water remedy.
Socket Weld Plug
Socket weld plugs briefly near pipe ends, making sure dependable seals for protection and testing in numerous piping structures.
SA182 Stainless Steel 317 Socket Weld Fittings Equivalent Grade Chart
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| SS 317 | S31700 | – | – | 1.4449 | – | – | SUS 317 |
SS ASME SA182 317 Socket Weld Fittings Chemical Composition
| Grade | Si | Cr | Mn | S | Mo | P | C | Ni | Fe |
| SS 317 | 1.0 max | 18.00 – 20.00 | 2.0 max | 0.030 max | 3.00 – 4.00 | 0.045 max | 0.08 max | 11.00 – 15.00 | 57.845 min |
317 Stainless Steel Socket Weld Fittings Mechanical Properties
| Grade | Yield Strength (0.2%Offset) | Melting Point | Elongation | Tensile Strength | Density |
| F317 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 35 % | Psi – 75000 , MPa – 515 | 7.9 g/cm3 |
SS 317 Socket Weld Fittings Sizes & Pressure Ratings
| Products | Size | |
| ASTM A182 SS 317 Socket Weld 90° Elbow | ASTM A182 SS 317 Socket Weld 45° Elbow |
Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS 317 Socket Weld Tee | ASTM A182 SS 317 Socket Weld Union | |
| ASTM A182 SS 317 Socket Weld Cross | ASTM A182 SS 317 Socket Weld Insert | |
| ASTM A182 SS 317 Socket Weld Bushing | ASTM A182 SS 317 Socket Weld Pipe Nipple | |
| ASTM A182 SS 317 Socket Weld Cap | ASTM A182 SS 317 Socket Weld Coupling | |
| ASTM A182 SS 317 Socket Weld Plug | ASTM A182 SS 317 Socket Weld Street Elbow | |
317 Stainless Steel Socket Weld Fittings Dimensions
ASME B16.11 Stainless Steel 317 Socket Weld 45/90 Degree Elbows (NPS 1/8″~4″ (DN6~DN100), Schedule STD/XS)- Dimensions
|
Nom Pipe Size |
DN | Center to Bottom of Socket-A | Tolerances± | Laying Lengths |
End Wall Thickness K Min |
|||||||
|
90° Elbows Tees,Crosses |
45° Elbows | A | E | F |
Couplings E |
Half Couplings F |
||||||
| Class Designation | Class Designation | Class Designation | ||||||||||
| 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | |||||||
| 1 | 25 | 22.5 | 27.0 | 14.0 | 17.5 | 2.0 | 4.0 | 2.0 | 12.5 | 28.5 | 9.6 | 11.2 |
| 1/8 | 6 | 11.0 | 11.0 | 8.0 | 8.0 | 1.0 | 1.5 | 1.0 | 6.5 | 16.0 | 4.8 | 6.4 |
| 1/4 | 8 | 11.0 | 13.5 | 8.0 | 8.0 | 1.0 | 1.5 | 1.0 | 6.5 | 16.0 | 4.8 | 6.4 |
| 3/8 | 10 | 13.5 | 15.5 | 8.0 | 11.0 | 1.5 | 3.0 | 1.5 | 6.5 | 17.5 | 4.8 | 6.4 |
| 1/2 | 15 | 15.5 | 19.0 | 11.0 | 12.5 | 1.5 | 3.0 | 1.5 | 9.5 | 22.5 | 6.4 | 7.9 |
| 3/4 | 20 | 19.0 | 22.5 | 13.0 | 14.0 | 1.5 | 3.0 | 1.5 | 9.5 | 24.0 | 6.4 | 7.9 |
| 1-1/4 | 32 | 27.0 | 32.0 | 17.5 | 20.5 | 2.0 | 4.0 | 2.0 | 12.5 | 30.0 | 9.6 | 11.2 |
| 1-1/2 | 40 | 32.0 | 38.0 | 20.5 | 25.5 | 2.0 | 4.0 | 2.0 | 12.5 | 32.0 | 11.2 | 12.7 |
| 2 | 50 | 38.0 | 41.0 | 25.5 | 28.5 | 2.0 | 4.0 | 2.0 | 19.0 | 41.0 | 12.7 | 15.7 |
| 2-1/2 | 65 | 41.0 | 28.5 | 2.5 | 5.0 | 2.5 | 19.0 | 43.0 | 15.7 | 19.0 | ||
| 3 | 80 | 57.0 | 32.0 | 2.5 | 5.0 | 2.5 | 19.0 | 44.5 | 19.0 | 22.4 | ||
| 4 | 100 | 66.5 | 41.0 | 2.5 | 5.0 | 2.5 | 19.0 | 48.0 | 22.4 | 28.4 | ||
Threaded Fittings.

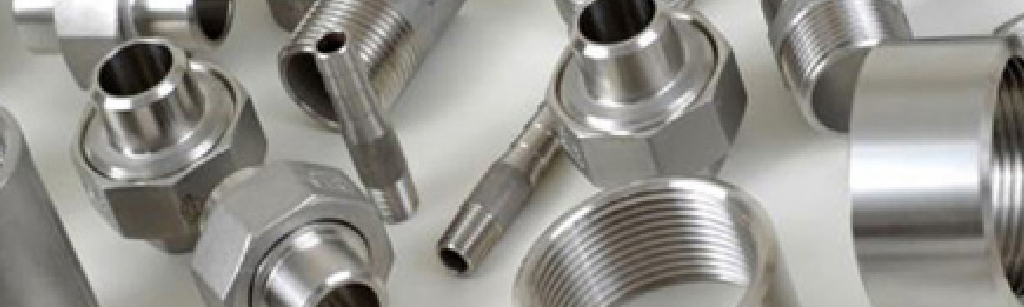

Discover the superior performance of SS 317 Threaded Fittings from Astromet Steel and Engineering, your trusted source for high-quality stainless steel solutions. Our threaded fittings are designed to provide excellent resistance to corrosion, pressure, and extreme temperatures, making them suitable for a wide range of applications, including plumbing, industrial, and marine environments.
The SS 317 alloy offers enhanced strength and durability, ensuring long-lasting and reliable connections. With meticulous attention to detail and adherence to strict quality standards, our SS 317 Threaded Fittings guarantee ease of installation and maintenance. At Astromet Steel and Engineering we prioritize customer satisfaction and strive to deliver products that meet and exceed industry expectations. Rely on our expertise and commitment to quality for all your SS 317 Threaded Fittings needs and experience the difference that Astromet Steel and Engineering brings to your piping systems.
Stainless Steel 317 Threaded Pipe Fittings Specifications
| Specifications | ASTM A182 / ASME SA182 |
| Dimension Standard | ANSI/ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Standard Size Range | 1/8” NB to 4” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Screwed-Threaded Forged Fittings |
| Melting Point | 1400-1450°C for (WP317) |
| Outside Diameter (OD) | Seamless / Threaded Forged Fittings ( 1/8″～4″), ERW / Welded / Fabricated Threaded Forged Fitting (1/8″～4″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-79, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Manufacturing Specification | ASME: ANSI B16.11, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2, MSS SP-79, 83, 95, 97, BS 3799 |
| A182 SS Threaded Forged Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A182 SS Threaded Forged Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
Threaded Pipe Types:
Threaded Nipple
Threaded nipples are quick pipes with male threads on each end, used to connect fittings or enlarge the period of a piping gadget. They are essential in plumbing and HVAC applications.
Threaded Elbow
Threaded elbows exchange the route of waft in a piping machine, to be had in 45° and 90° angles. They are extensively utilized in plumbing, oil and gasoline, and chemical processing.
Threaded Tee
Threaded tees are T-fashioned fittings that allow branching off a chief line. They are used to combine or cut up waft in water delivery, gasoline distribution, and business piping systems.
Threaded Coupling
Threaded couplings connect pieces of pipe, either of the identical or different diameters. They ensure a secure, leak-evidence connection, best for plumbing, irrigation, and commercial structures.
Threaded End Cap
Threaded end caps seal the give up of a pipe, stopping leaks and defending the pipe from harm. They are used in plumbing, gasoline strains, and systems requiring secure closure.
Threaded Hex
Threaded hex fittings, additionally known as hex nipples, have a hexagonal shape for smooth tightening with a wrench. They are used to connect fittings or make bigger pipes in excessive-strain applications.
Threaded Union
Threaded unions are part of two pipes, bearing in mind clean disconnection and reconnection. They are best for structures requiring common upkeep, along with plumbing, heating, and industrial piping.
SA182 Stainless Steel F317 Threaded Forged Pipe Fittings Equivalent Grade Chart
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| SS 317 | S31700 | – | – | 1.4449 | – | – | SUS 317 |
SS ASME SA182 F317 Forged Fittings Chemical Composition
| Grade | Si | Ni | Fe | Cr | Mo | P | C | Mn | S |
| SS 317 | 1.0 max | 11.00 – 15.00 | 57.845 min | 18.00 – 20.00 | 3.00 – 4.00 | 0.045 max | 0.08 max | 2.0 max | 0.030 max |
Stainless Steel 317 Threaded Forged Steel Fittings Mechanical Properties
| Grade | Density | Elongation | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point |
| F317 | 7.9 g/cm3 | 35 % | Psi – 30000 , MPa – 205 | Psi – 75000 , MPa – 515 | 1400 °C (2550 °F) |
SS 317 Forged Fittings Sizes & Pressure Ratings
| Products | Size | |
| ASTM A182 SS 317 Forged 90° Elbow | ASTM A182 SS 317 Forged 45° Elbow |
Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM A182 SS 317 Forged Tee | ASTM A182 SS 317 Forged Union | |
| ASTM A182 SS 317 Forged Cross | ASTM A182 SS 317 Forged Insert | |
| ASTM A182 SS 317 Forged Bushing | ASTM A182 SS 317 Forged Pipe Nipple | |
| ASTM A182 SS 317 Forged Cap | ASTM A182 SS 317 Forged Coupling | |
| ASTM A182 SS 317 Forged Plug | ASTM A182 SS 317 Forged Street Elbow | |
317 Stainless Steel Threaded Forged Fittings Dimensions
ASME B16.11 Stainless Steel 317 Threaded Forged 45/90 Degree Elbows (NPS 1/8″~4″ (DN6~DN100), Schedule STD/XS
| DN |
Nom. Pipe Size |
Center to End Elbows.Tees.Cross A |
Center to End 45° Elbow C |
Outside Diameter of Band H |
Minimum Wall Thickness G |
||||||||
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 |
Why Choose Us?
Astromet Steels and Engineering offers wonderful metallic products and exceptional engineering answers. Known for precision and reliability, we provide substances like stainless steel and nickel alloys tailor-made to numerous commercial desires. Trust us for excellence and innovation in each project.
Unwavering Quality: We prioritize stringent exceptional management measures to ensure each fitting meets the best requirements.
Extensive Inventory: We maintain a vast inventory of Stainless Steel 316 Pipe Fittings in numerous sizes, schedules, and types to meet various desires.
Customizable Solutions: We offer custom fabrication offerings to create fittings tailor-made to your unique assignment requirements.
Reliable Service: Our devoted group is dedicated to presenting brilliant customer service and technical support during the entire method.
Contact Us Today
With Astromet Steel and Engineering, you may agree with that you’re getting top-satisfactory Stainless Steel 316/316L Pipe Fittings that meet industry requirements and exceed your expectancies. Whether you want buttweld, threaded, or socketweld fittings, we have the answer for your industrial desires.
